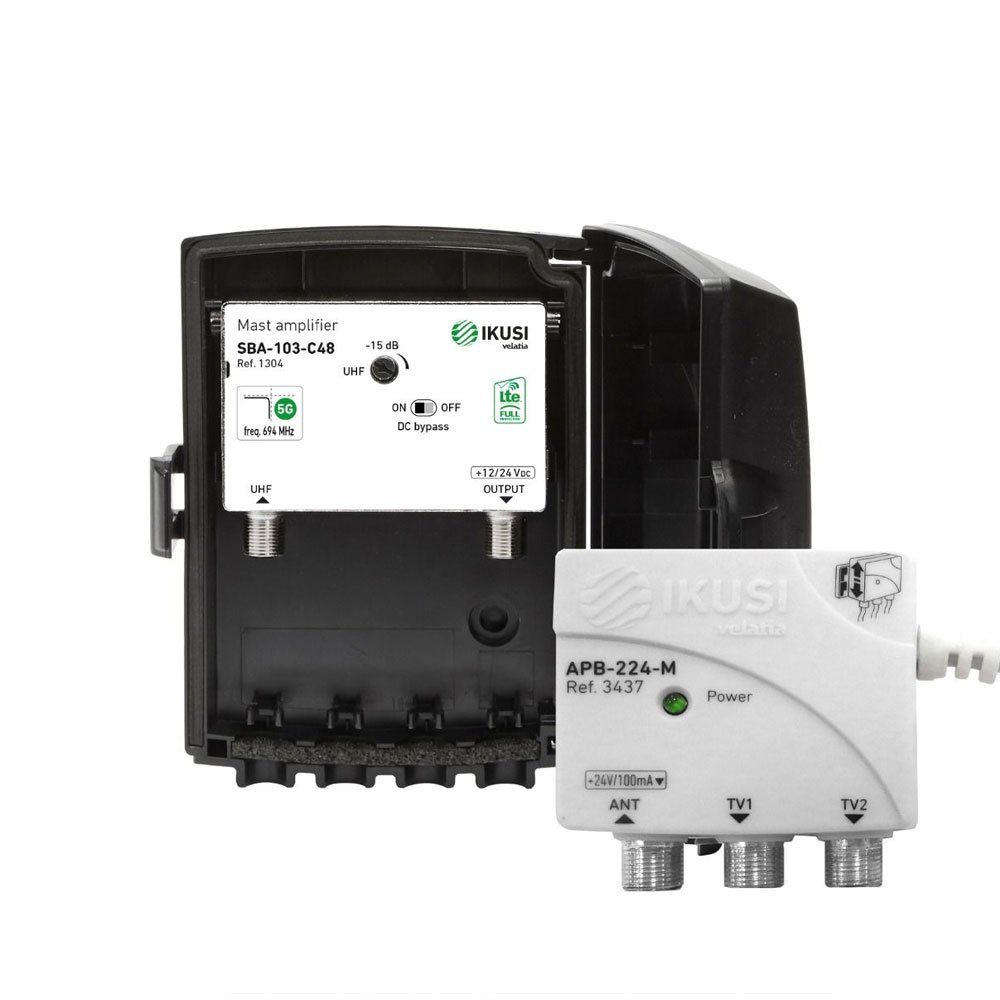

ΕΝΙΣΧΥΤΗΣ ΙΣΤΟΥ IKUSI JSBA103-C48 UHF 35dB

ΕΝΙΣΧ. ΙΣΤ. IKUSI JSBA103-C48 UHF 35dB

Τεχνικά Χαρακτηριστικά
Ενισχυτής Ιστού SBA103-C48 (Ref. 1304)

Input
Band: UHF 21-48 (2nd digital dividend)Frequency range: 470…694 MHzGain: > 34 dBGain adjustment: 0~15 dBNoise figure: ≤ 3.0 dB

Output Level
Max. output level: 113 dBμV (DIN 45004B IMD-60dB)

Power Supply and Consumption
Power supply: +12 / +24 VDCConsumption: 60 / 70 mADC bypass: Yes

Mechanical
Operating temperature: -10… +60 ºCProtection level: IP 54Dimensions: 96 x 125 x 46 mmWeight: 0.370 Kg

Μονάδα Τροφοδοσίας APB-224-M
Regulation type: Switch-modeInput / Outputs: 1 / 2 PCSMains voltage: 100~240 VAC / 50HzOutput voltage: +24 (±5%) VDCOutput current: 100 mA (max.)Frequency range: 47~862 MHzRF insertion loss: ≤4 dBEfficiency: >70 %Dimensions: 50 x 50 x 25 mm
